The Ekho EK-WL8-EXP expander is experiencing a power failure. How can this be resolved?

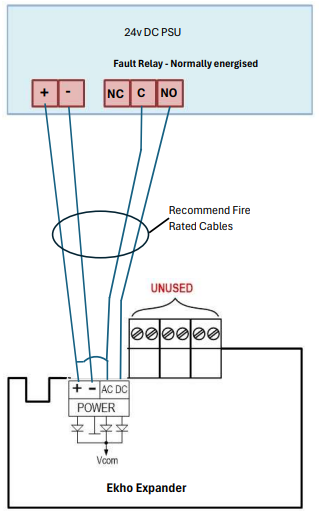

There may be an issue with the wiring between the EK-WL8-EXP and the external power supply. Please check the wiring using the wiring diagram included in the article as a reference.

Connect a normally closed (NC) terminal of fault relay terminals on an external power supply to the AC/DC terminal of the EK-WL8-EXP. If not correctly connected, a fault may be displayed on the wireless translator EK-WL8-THR, and a fault may also be displayed on the panel to which the translator is connected.
